Generatoare Nitrogen

Through the PSA technology being applied, IDEAL MAKINA produces nitrogen generators up to 95% – 99.9999% (1 ppm) purity in the range of 0.5 – 5,000 Nm3 / h with 30 models.

IDEAL MAKİNA has been the leader in the sector since 2005, with more than 500 systems established in the domestic and international markets.

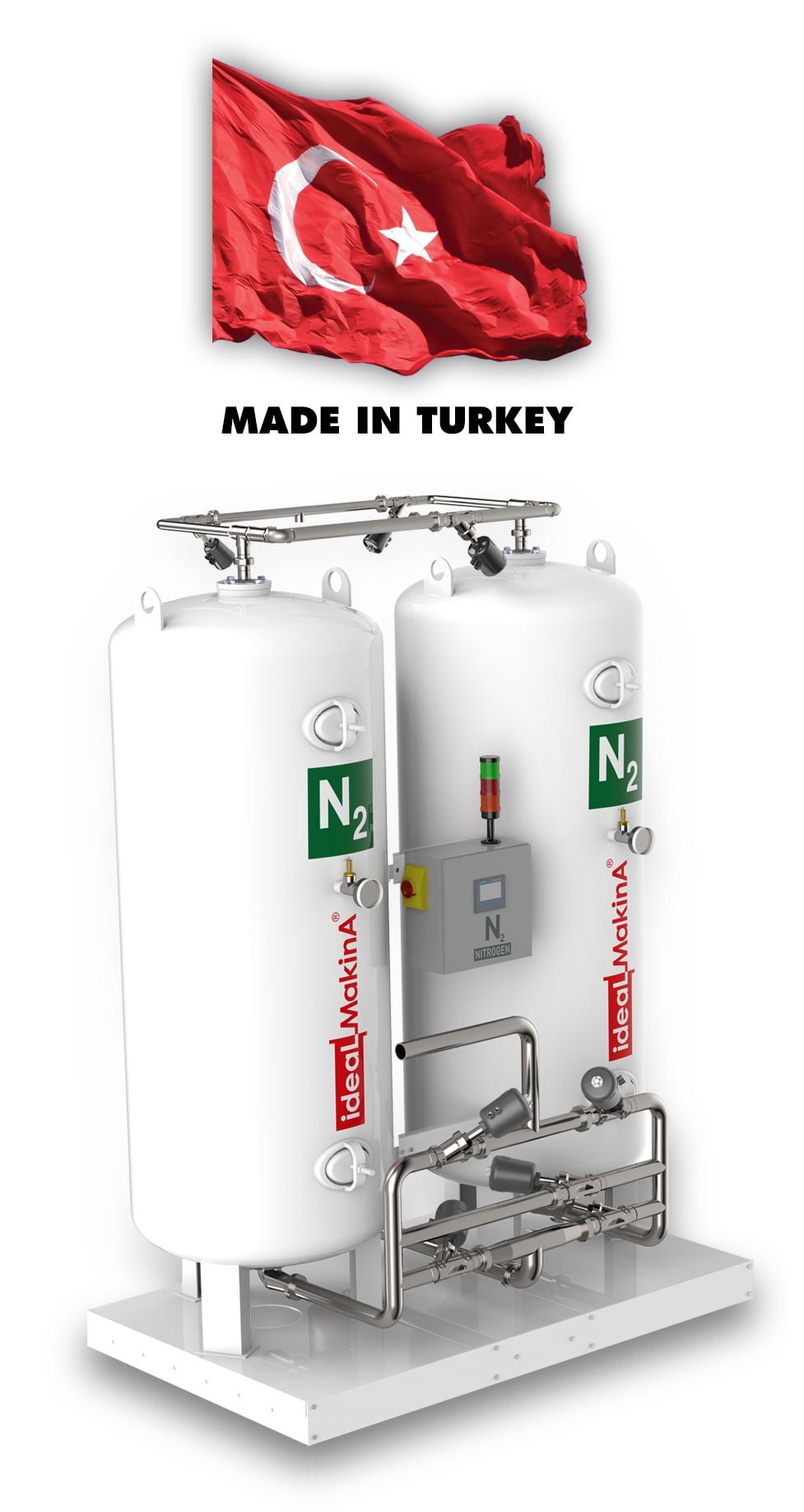

IDEAL MAKINA PSA Nitrogen Generator Systems produce nitrogen in the form of gas from compressed air on-site where they are running and offer a cost-effective, continuous and safe solution compared to traditional nitrogen gas sources such as cylinders or cryogenic liquid. The design is made for 24/7 operation. Each nitrogen generator is equipped with an automatic start and stop function, which allows the user to start and stop automatically according to nitrogen consumption.

Through the developed patented vortex technology, IDEAL MAKINA is providing more efficient air separation by providing more efficient usage of CMS (Carbon Molecular Sieve) in the new GN series nitrogen generators. This leads to be the one and only Nitrogen Generator with the least compressed air consumption in the World.

Use smaller compressors, consume less energy with IDEAL MAKINA Nitrogen Generator.

You can produce your own nitrogen with IDEAL MAKINA NITROGEN GENERATOR SYSTEMS and can forget about your cylinder or liquid nitrogen purchasing costs!

Moreover:

• In the amount you need
• The purity required by your production process
• At required pressure
• Under your control…

You do not only buy oxygen cylinder or liquid oxygen, but you do also buy:

• Safety problems due to high pressure in the cylinders
• Cylinder / liquid nitrogen tank rental
• Transportation costs
• Internal purchase expenses
• Labor costs and risks for cylinder when loading – unloading and transportation.
• 10-15% nitrogen leakage due to temperature and internal pressure in the liquid nitrogen tank
• Nitrogen gas pressure fluctuations along with cylinder changes!

1- Screw Air Compressor
2- Water Seperator and Particle Filter
3- Compressed Air Dryer
4- Activated Carbon Tower
5- Particle Filter
6- Dust Filter
7- Air Vessel 8- Automatic Condensate Drain
9- Nitrogen Generator
10- Nitrogen Generator Buffer Vessel
11- Nitrogen Distribution Set
12- Nitrogen Booster Compressor
13- Nitrogen Bundle
14- Process

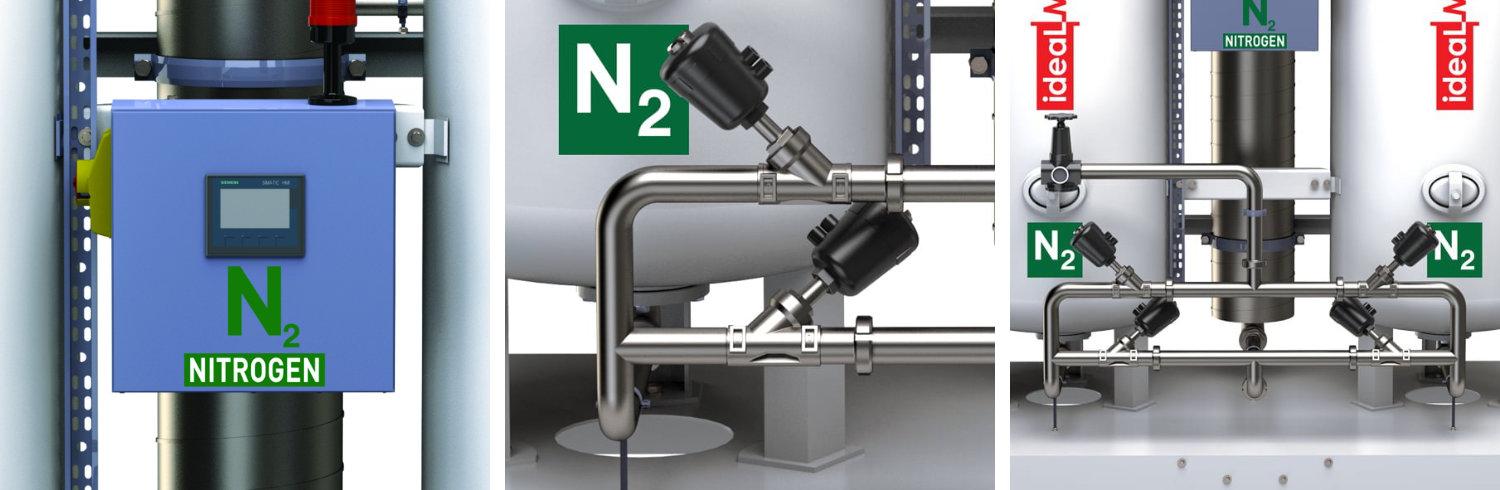

Touch Control Panel

• 5″ – 10″ Touch Color Screen
• 16 Language Options
• 14 Sensor Inputs
• Long-lasting Zirconia oxygen sensor
• Modbus/Profibus/RMB
• IP55 Protection Standards

Redundant Valve Technology

• Spare Valve Set
• Continuous Production Guarantee
• Easy Maintenance
• Easy Control Function
• Leak-proof valve connection

AISI 316 Block Valve Technology

• High quality stainless steel
• Pneumatic Control
• No maintenance need
• Small footprint monoblock design
